MADE FOR FARMING!

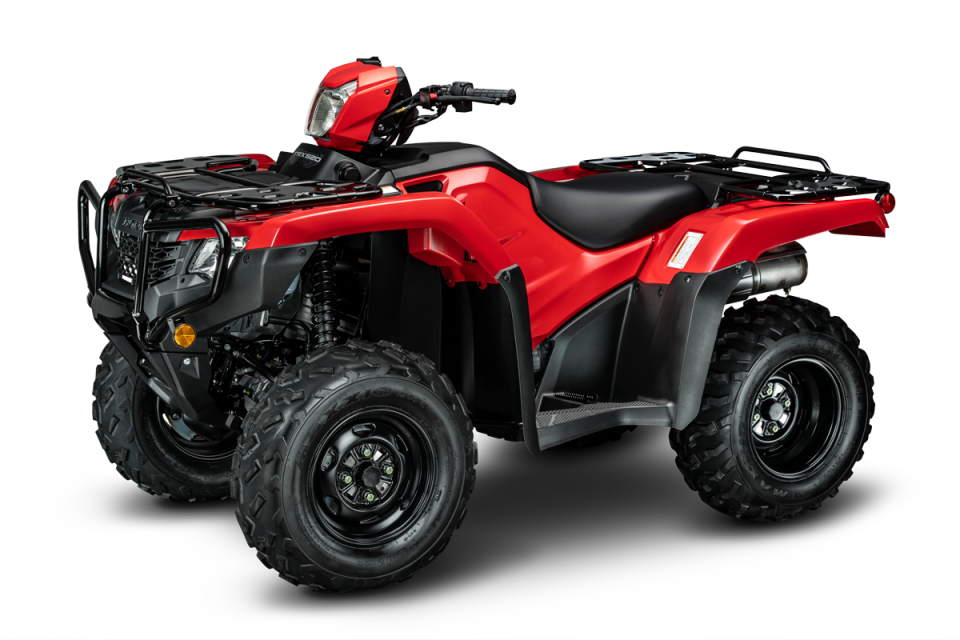

This model is our dedication to offering a premiere no-compromise work ATV. Equipped with a larger 518cc engine, the new TRX520FM2 is stronger, more powerful, and easier to use than its predecessor.
The new motor and updated mapping provides more power and torque where it’s used most - in the low end and midrange - to allow quicker acceleration, better ascending, and improved hauling and towing. The Honda TraxLok system allows you to move between 2WD and 4WD mode with just the flick of a switch. Front diff lock maximises traction over very rough terrain. The TRX520FM2 boasts new styling, an even more powerful assist headlight and increased storage compartments.
Elsewhere, the swing arm-style rear suspension is tried and proven on New Zealand farms, easily serviceable and with less moving parts it’s made for durable running in harsh conditions. Towing is made more comfortable by moving the tow hitch onto the swing arm. A bulletproof manual machine loved by Kiwis, the TRX520FM2 is set to become NZ’s new favourite ATV.
*For Fieldays online get $600 Honda Dollars with every new TRX520FM2. Ts & Cs Apply
YOUR BIKE IN DETAIL
|Engine Type||Liquid-cooled OHV longitudinally mounted single-cylinder, 4 stroke|
|Bore and Stroke||96.0mm x 71.5mm|
|Ignition||Full-transistorised with electronic advance
|Carburetion||Programmed Fuel Injection (PGM-FI) 36mm throttle body|
|Starter||Electric with auxiliary recoil standard|
|Final Drive||Direct front and rear driveshafts w/ TraxLok® and locking front differential|
|Transmission||Manual 5-speed with reverse|
|Suspension Front||Independent double wishbone - 185mm of travel|
|Suspension Rear||Swing arm with single shock - 185mm of travel|
|Brakes Front||Dual hydraulic - 190mm discs|
|Brakes Rear||Single sealed - 160mm mechanical drum|
|Tyres Front||25 x 8 - 12|
|Tyres Rear||25 x 10 - 12|
|Fuel Capacity||14.7litres incl 4.9litres reserve|
|Dimensions||2106mm(L) x 1205mm(W) x 1213mm(H)|
|Carrier Capacity||40kg Front rack – 80kg Rear rack|
