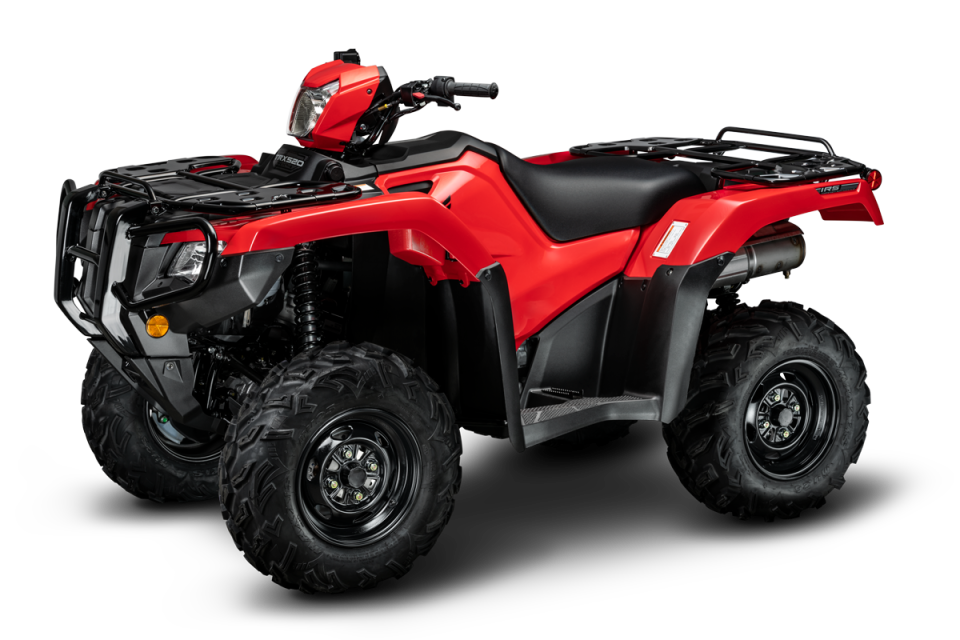

TRX520FM6

BETTER THAN EVER!

PATRIOT RED
OVERVIEW

TRX520FM6

There’s big news this year for the Honda Foreman line-up. It starts with a new, bigger 518cc engine, and continues with a host of other improvements. For those looking for a plush and smooth ride it’s easy to choose the TRX520FM6. With independent rear suspension (IRS), a manual transmission and power steering, this is an unbelievably capable bike that will provide all-day comfort on the farm.

When you need a durable manual machine that can handle the toughest of terrain, and you also need a large towing capacity, the new TRX520FM6 is the perfect choice. The larger engine provides improved power and torque where you need it - in the low end and midrange - for quicker acceleration, better ascending and improved hauling, complementing the massive 600kg towing capacity. A handlebar-mounted switch makes it easy to select between two-wheel drive, four-wheel drive and four-wheel drive with the front differential locked.

The new 1.9L utility box with weatherproof cover on the front deck provides a second storage compartment, while the newly engineered front and rear cargo racks provide more loading options. New styling completes the package and provides a more aggressive stance, making the FM6 better than ever.

*For Fieldays online get $600 Honda Dollars with every new TRX520FM6. Ts & Cs Apply

BOOK A TEST RIDE

GALLERY

TRX520FM6

SPECIFICATIONS

YOUR BIKE IN DETAIL

TRX520FM6
Engine
Engine Type Liquid-cooled OHV longitudinally mounted single-cylinder, 4 stroke
CC Rating 518cc
Bore and Stroke 96.0mm x 71.5mm
Ignition Full-transistorised with electronic advance
Carburetion Programmed Fuel Injection (PGM-FI) 36mm throttle body
Compression Ratio 9.5:1
Transmission
Starter Electric with auxiliary recoil standard
Final Drive Direct front and rear driveshafts w/ TraxLok® and locking front differential
Transmission Manual 5 speed with reverse
Wheels, Suspension & Brakes
Suspension Front Independent double wishbone - 185mm of travel
Suspension Rear Independent rear suspension - dual arm - 215mm of travel
Brakes Front Dual hydraulic - 190mm discs
Brakes Rear Single hydraulic - 170mm disc
Tyres Front 25 x 8 - 12
Tyres Rear 25 x 10 - 12
Dimensions & Weight
Wheelbase 1,294mm
Seat Height 924mm
GroundClearance 250mm
Kerb Weight 318kg
Fuel Capacity 14.7litres incl 4.9litres reserve
Dimensions 2185mm(L) x 1205mm(W) x 1238 mm(H)
Carrier Capacity 45kg Front rack– 85kg Rear rack
Towing Capacity 600kg
FEATURES

TAKE A CLOSER LOOK

/10
